Single scissor lifting table HYPER
500 kg load, 1300x800x190-1010 mm
Art. no.: 31088
- Basic model with easily adjustable height
- Makes handling heavy goods easier
- Anti-crush protection

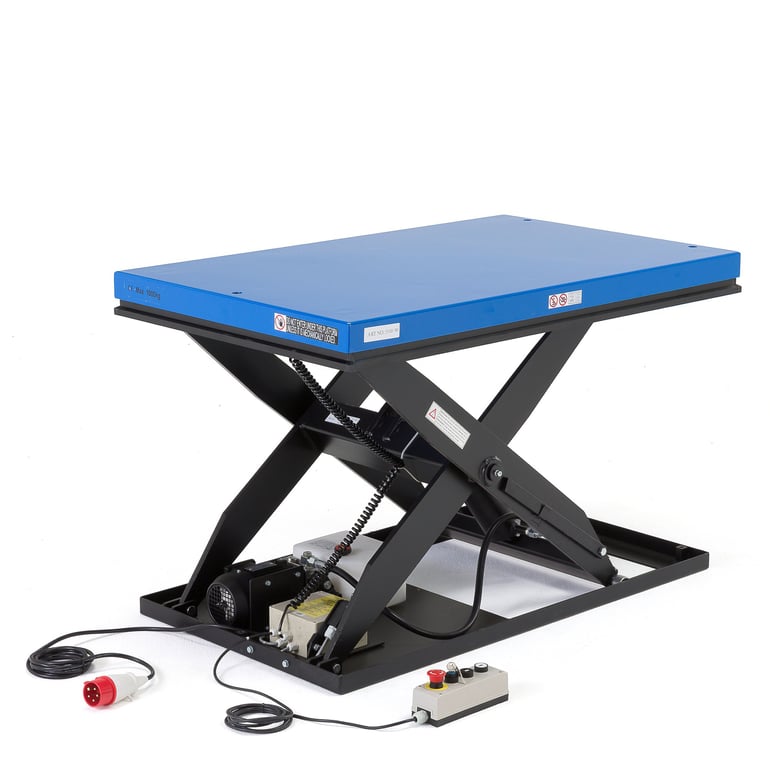

A lift table supplied complete with a 3-phase, 380 V electric motor, oil tank, pump, control valves and control box with "up" and "down" buttons.
Load capacity (kg)
This product is no longer available.
See all Lift tables with single scissor hereProduct information

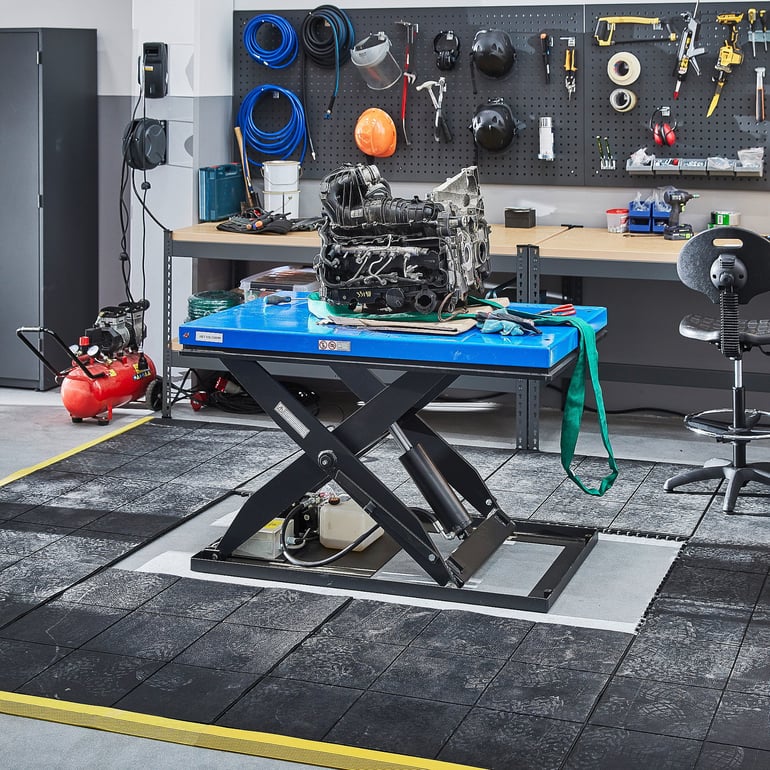

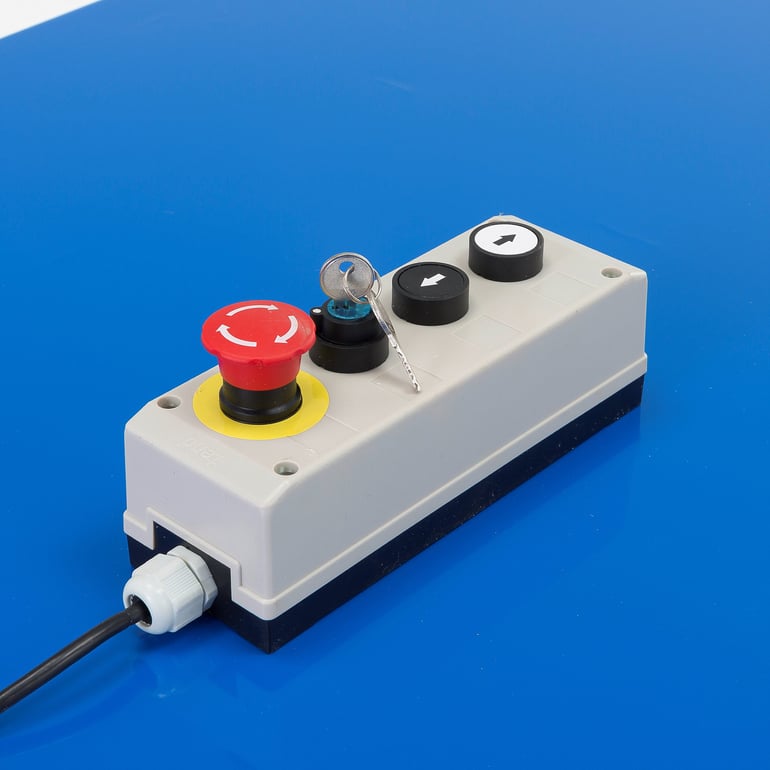

An affordable and sturdy scissor lift table to assist work in machine shop and warehouse assembly or packaging departments. The lift table has built-in hydraulic cylinders with hard-chromed piston rods. A fixed anti-crush frame on the underside of the table prevents the table from being lowered further if any body part is trapped underneath. Adjusting the lift table's height is easy with the aid of the hand-held control box. The lift table is CE-marked.
An affordable and sturdy scissor lift table to assist work in machine shop and warehouse assembly or packaging departments. The lift table has built-in hydraulic cylinders with hard-chromed piston rods. A fixed anti-crush frame on the underside of the table prevents the table from being lowered further if any body part is trapped underneath. Adjusting the lift table's height is easy with the aid of the hand-held control box. The lift table is CE-marked.
Documents
Product specifications
- Length:1300 mm
- Width:800 mm
- Lift height:190-1010 mm
- Voltage:380 V
- Lift time (sec):26 sec
- Colour:Blue
- Colour code:RAL 5017
- Load capacity:500 kg
- Weight:240 kg
- Assembly:Assembled
- Testing:CE
